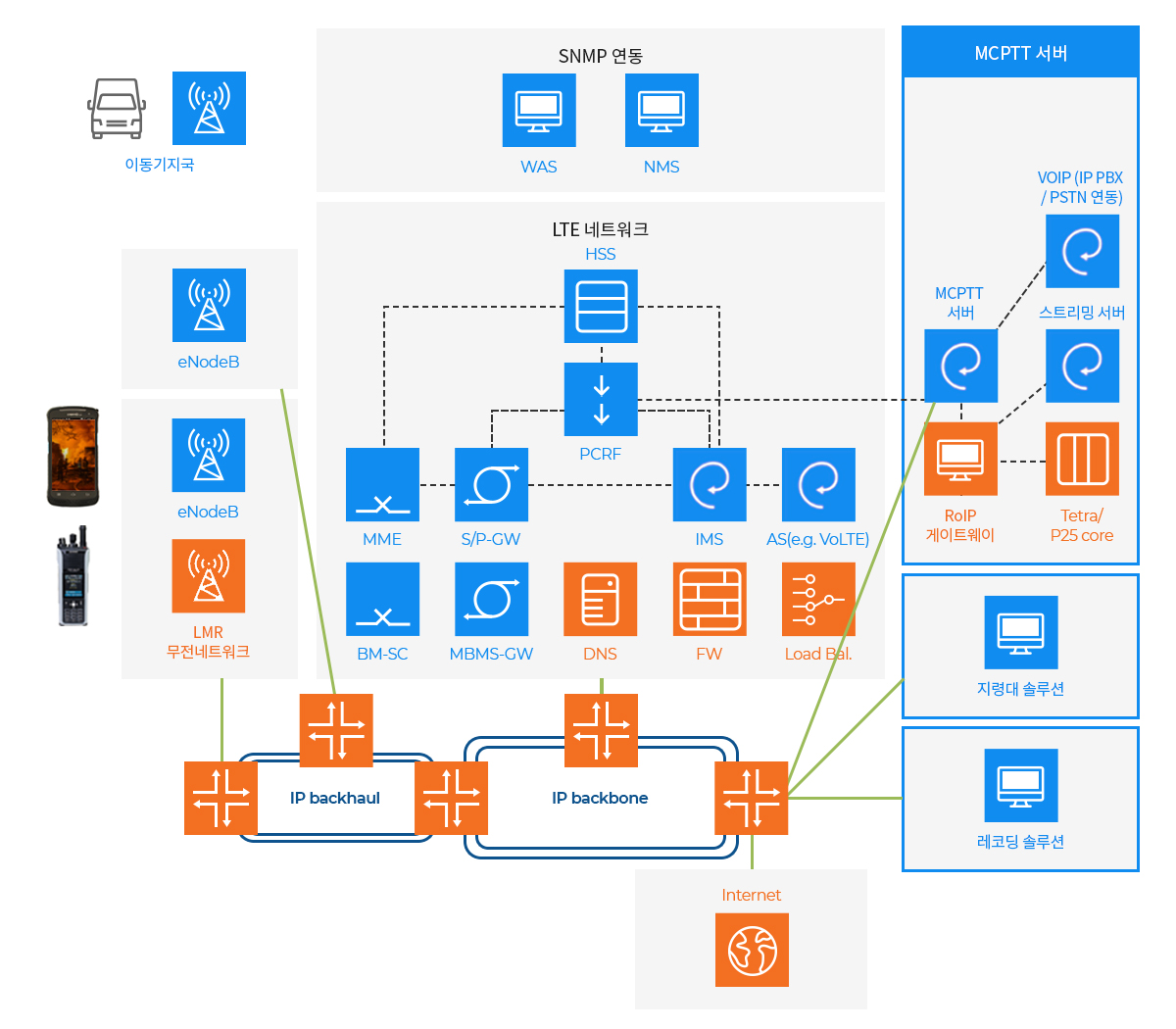

MCX Network Architecture

MCX 네트워크

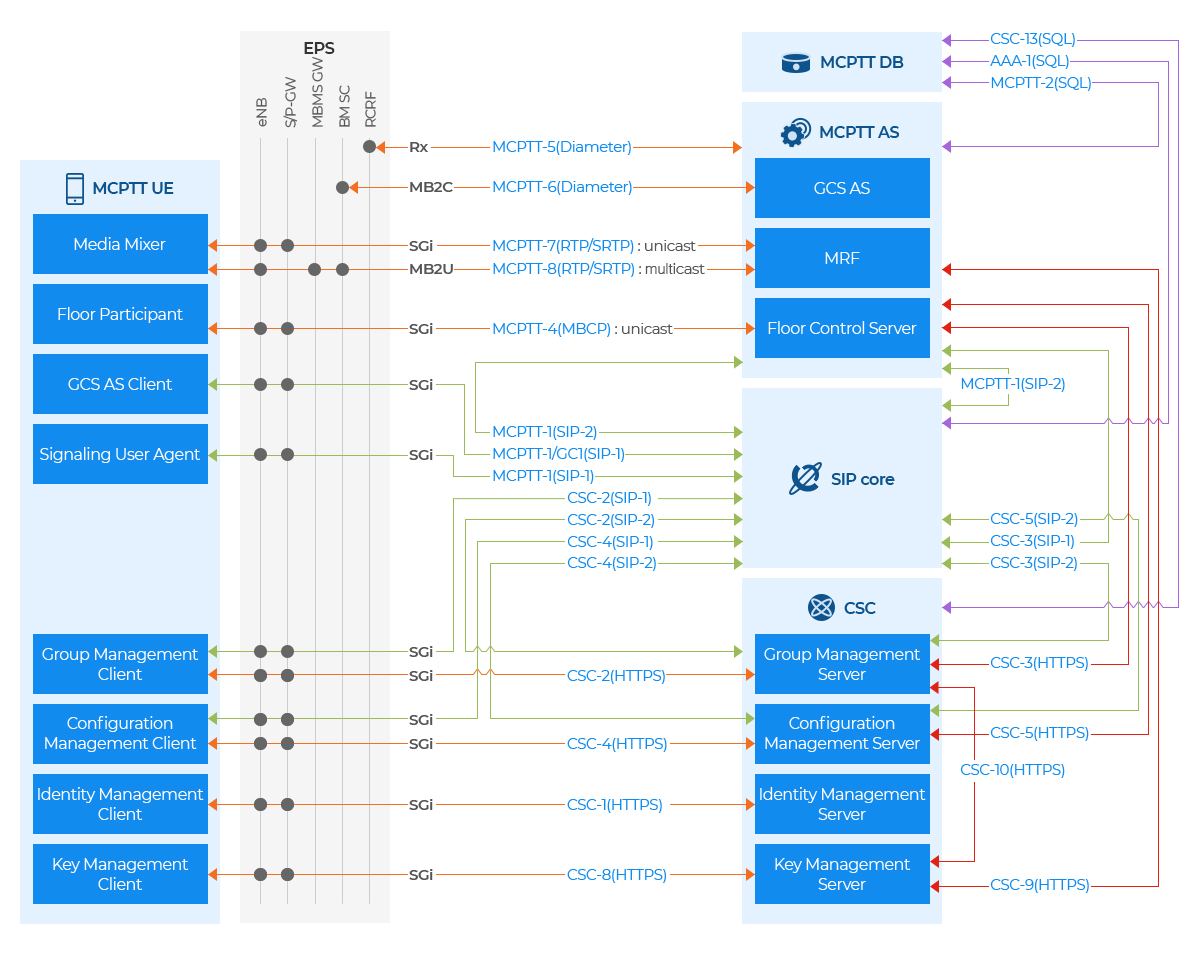

MCX Interfaces

MCX 아키텍쳐
CybertelBrdige's MCX Solution Evaluation
CybertelBrdige's MCX Solution Evaluation
Reference Point Interworking Network Entities
MCPTT-1/GC1 MCPTT UE ↔ MCPTT AS
MCPTT-2 MCPTT AS ↔ MCPTT DB
MCPTT-3 MCPTT AS ↔ MCPTT AS
MCPTT-4 MCPTT UE ↔ MCPTT AS
MCPTT-5 (Rx) MCPTT AS ↔ EPS (PCRF)
MCPTT-6 (MB2C) MCPTT AS ↔ EPS (BM-SC)
MCPTT-7 MCPTT UE ↔ MCPTT AS
MCPTT-8 (MB2U) MCPTT UE ↔ MCPTT AS
CSC-1 MCPTT UE (IdMC) ↔ CSC (IdMS)
CSC-2 MCPTT UE (GMC) ↔ CSC (GMS)
CSC-3 MCPTT AS ↔ CSC (GMS)
CSC-4 MCPTT UE (CMC) ↔ CSC (CMS)
CSC-5 MCPTT AS ↔ CSC (CMS)
CSC-8 MCPTT UE (KMC) ↔ CSC (KMS)
CSC-9 MCPTT AS ↔ CSC (KMS)
CSC-10 CSC (GMS) ↔ CSC (KMS)
CSC-13 CSC ↔ MCPTT DB
AAA-1 SIP core ↔ MCPTT DB

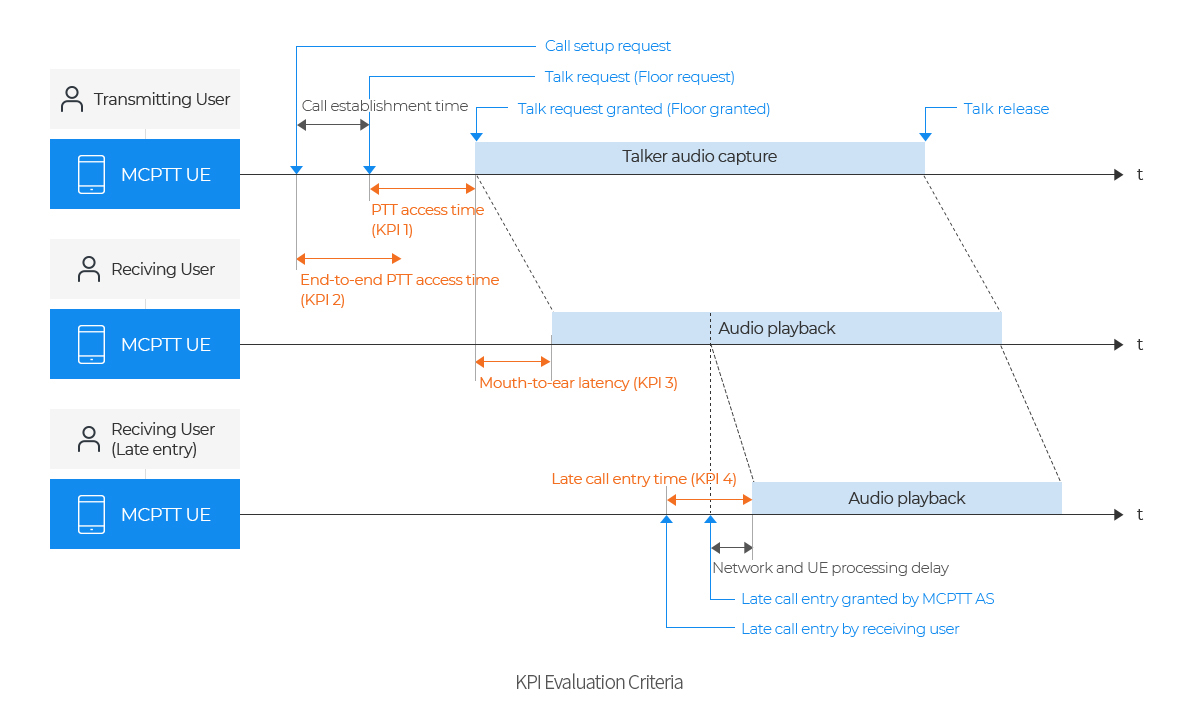

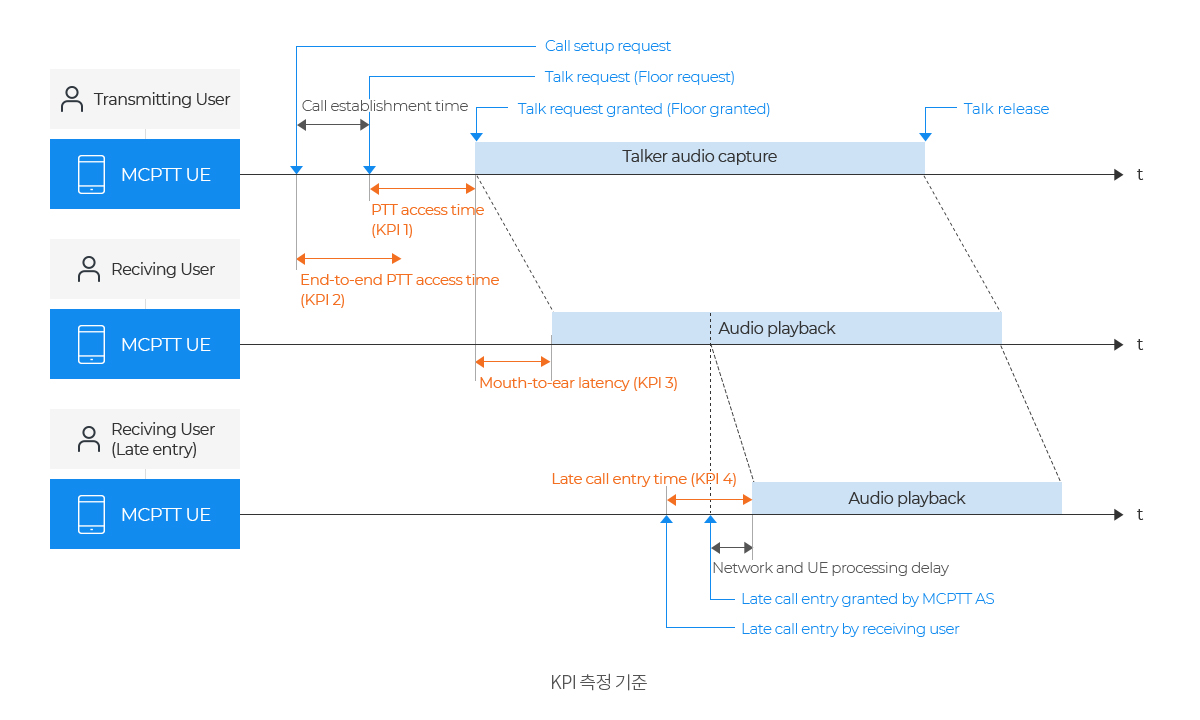

MCPTT KPI

MCPTT kpi
  • Standardized transmission rate is applied to audio, video and data transmission to multiple receivers in PS-LTE at equally minimized latency.
  • The solution Solution offers service twice faster than 3GPP standards.
CybertelBrdige's MCX Solution Evaluation
CybertelBrdige's MCX Solution Evaluation
MCX solution + CM65 KPI Test Result 3GPP Standard
KPI 1 PTT Access Time 60 ms 300 ms
KPI 2 for Private PTT End to End Access Time 400 ms 1000 ms
KPI 2 for Goup PTT End to End Access Time 170 ms 1000 ms
KPI 3 for Voice Mouth to Eaar Delay 55 ms 300 ms
KPI 46 Late Call Entry (encrypted) 105 ms 350 ms

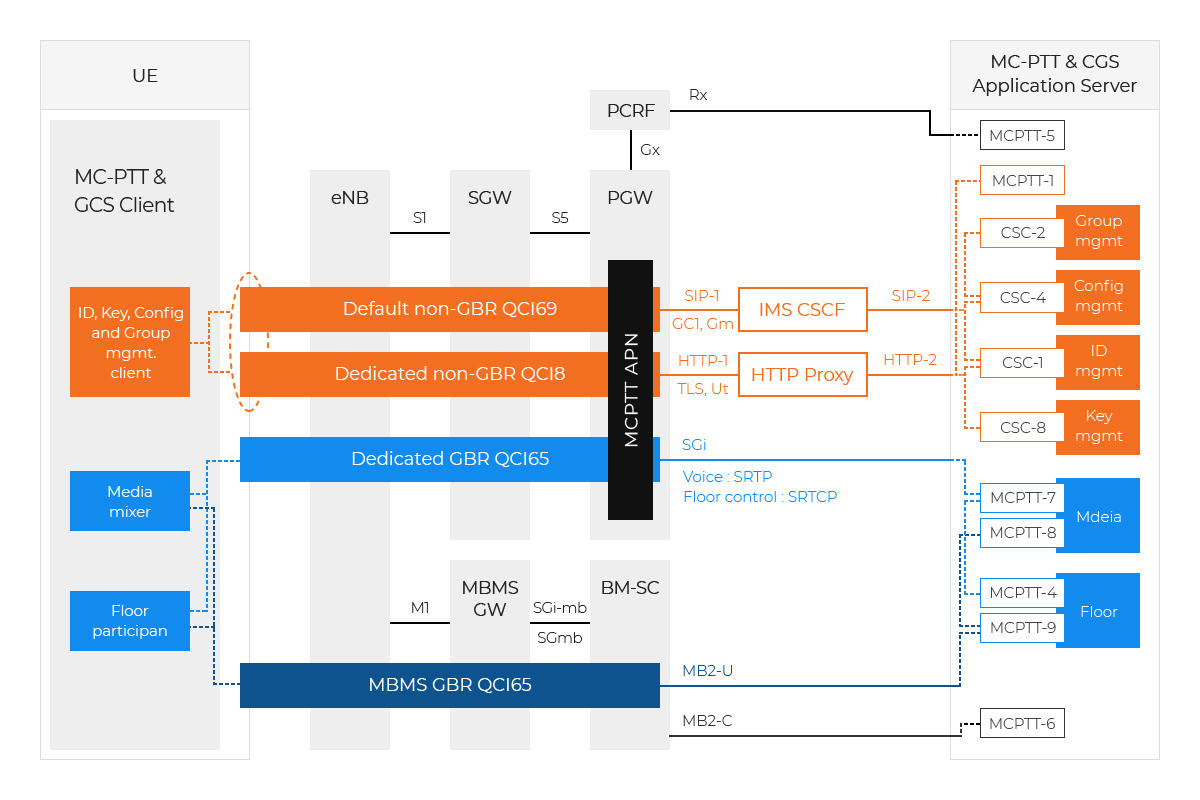

MCX QCI

MCX qci
  • Quality of Service(QoS) have been set to serve mission-critical communications to guarantee the highest priority for PS-LTE network.
  • Assigns Quality Class Identifier (QCI 65, 69, 70) to each traffic bearer that suits priority policy.
  • MCX calls are allocated with network resources to make emergency calls prior to any other calls even amidst heavy traffic.
